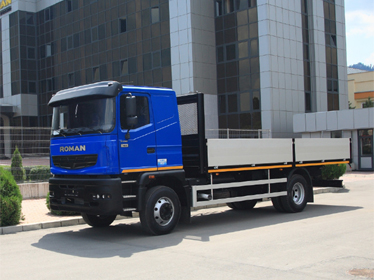

GENERAL GOOD TRANSPORT TRUCK - 12.250 F
Loading: 6.5 (t)
General goods transport flatbed truck.
PERFORMANCES
| Maximum speed | 110.0 Km/h |
| Maximum speed electronically limited | 90.0 Km/h |
| Longitudinal slope | 30.0 % |
| Cross slope | 20.0 % |
| Turning diameter between curbs | 17.8 m |
| Temperature range | -23 … +52 C |
DIMENSIONS AND WEIGHTS
| Permissible total weight | 12000.0 kg |
| Weight rigid | 5500.0 kg |
| Loading capacity (including staff) | 6500.0 kg |
| Overall length | 8800.0 mm |
| Total width | 2500.0 mm |
| Total height loaded (unloaded) | 2900 (2950) mm |
| Ground clearance front (back) | 290 (300) mm |
BODY
- Flatbed platform with aluminum side and rear tilting panels.
- Interior dimensions : 6500x2300x600
ENGINE
| Type | MAN D 0836– Diesel, 4 stroke, 6 cylinders in line, turbocharged, intercooler, water cooled, with EVB |
| Displacement | 6871.0 l |
| Rated power | 184 kW (250 HP) / 2300 rpm |
| Torque | 1000 Nm / 1200 -1750 rpm |
| Level of pollution | EURO5 |
TRANSMISSION
| Clutch | Type: F&S MFZ 395, single plate, dry |
| Gearbox | Type: ZF 9S1310, mechanical syncromesh with 9+1 gears. |
| Front axle | Type: V060 steering not driven. |
| Rear axle | Type: PS 960 driven, twin axle, lockable interaxle differential |
| Options | Optional : Central greasing system |
CABINE
Type: FNL, medium size 1+1 seats with pneumatic suspension, hydraulic tilting, mirrors, heating and ventilation system, reverse motion horn. Optional: fiber glass style, radio-CD, electric windows, board computer, air condition, independent heating system, beacon light.
WHEELS
| Tires | 10.00 - R20 - 6+1 pcs |
| Rim | 7.50 X 20 - 6+1 pcs |
BRAKES
| Brake system | Integral pneumatic with 2 independent circuits front/rear, and EVB engine brake. |
